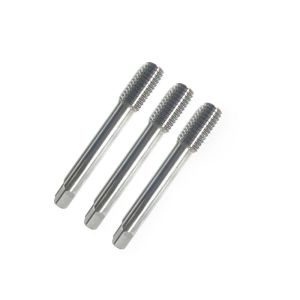

Custom Thread End Mill Bits / Thread Mill Cutter CNC Processing Mills

Model Number : Thread Mill Cutter

Place of Origin : MADE IN CHINA

Brand Name : KTC

Certification : CCC

MOQ : 10 pcs

Price : Negotiation

Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack...

Delivery Time : 1-35days

Payment Terms : T/T, L/C,Paypal...

Supply Ability : 10000pcs/week

Product Name : Custom Thread End Mill Bits / Thread Mill Cutter CNC Processing Mills

Raw Material : GU25UF

Flutes No. : 3/4 Flutes

Hardness : >92HRA

Material : Carbide

Precision : High precision

Contact Now

Custom Thread End Mill Bits / Thread Mill Cutter CNC Processing Mills

In thread milling, the thread is produced by doing a helical interpolation. The cutting process enables the production of threads from a nominal diameter of 1 mm (single profile), with multi-profile from M2. Some tools are also equipped with countersinkers and/or face cutters.

Specifications

Raw Material	GU25UF
WC	88%
Co	12%
TRS	>4300N/mm2
Hardness	>92HRA
A.O.L	50mm-90mm
Grain size	0.4 μm
Upto	HRC60
Flutes No	3/4F
Suitable for	Aluminum,plastic and other materials

Standard Sizes

UN 60° Inner Thread Mill Cutter for Aluminum
Pitch (TPI)	UNC	UNF	UNEF	Shank Dia.	Edge Dia.	No. of Flutes	Flute Length	Overall Length	Bottom Hole Dia.
36		No.8-36		4	3	3	8.5	50	3.5
32		No.10-32	No.12-3/8-32	4	3.5	3	11.1	50	4
28		No.12-28,1/4-28	7/16,1/2-28	4	4	3	11.8	50	4.6
28		1/4-28	7/16,1/2-28	6	5	3	12.7	57	5.5
28			7/16,1/2-28	10	9.2	4	22.7	75	10.2
24	No.10-24	5/16,3/8-24	9/16,11/16-24	4	3.2	3	10.6	50	3.8
24	No.12-24	5/16,3/8-24	9/16,11/16-24	4	4	3	11.6	50	4.5
24		5/16,3/8-24	9/16,11/16-24	6	6	3	15.9	57	6.8
24		3/8-24	9/16,11/16-24	8	7.8	3	19.1	60	8.5
24			9/16,11/16-24	12	11.9	4	28.6	75	13.2
20	1/4-20	7/16,1/2-20	3/4,1-20	4	4	3	12.7	50	5.2
20		7/16,1/2-20	3/4,1-20	10	9	4	22.9	75	9.8
20		1/2-20	3/4,1-20	10	10	4	25.4	75	11.5
20			3/4,1-20	12	12	4	38.1	75	17.8
18	5/16-18	9/16	11/16,1-11/16-18	6	5.8	3	16.9	57	6.5
18		9/16,5/8-18	11/16,1-11/16-18	10	10	4	29.6	75	12.8
16	3/8-16	3/4-16		8	7.6	3	19.1	60	8
16		3/4-16		12	12	4	28	75	17.5
14	7/16-14	7/8-14		8	8	3	20	60	9.3
14		7/8-14		16	16	4	39.9	90	20.5
13	1/2-13			8	8	3	20	60	10.8
12	9/16-12	1"1-1/2-12		10	10	4	28	75	12.3
12		1"1-1/2-12		16	16	4	40	90	23.5
11	5/8-11			12	12	4	30	75	13.5
10	3/4-10			12	12	4	30	75	16.5
9	7/8-9			16	16	4	38	90	19.5
8	1-8			16	16	4	40	90	22

UN 60° Outer Thread Mill Cutter for Aluminum
Pitch (TPI)	UNC	UNF	Shank Dia.	Edge Dia.	No. of Flutes	Flute Length	Overall Length
32	No.8-32		6	6	3	11.91	50
28		No.12-28	6	6	3	12.7	50
24	No.12-24		6	6	3	12.7	50
20	1/4-20		6	6	3	15.4	50
18	5/16-18		8	8	3	16.93	60
16	3/8-16		8	8	3	19.05	60
12	9/16-12		12	12	4	29.6	75

M ISO Standard 60°Inner Thread Mill Cutter for Steel
Pitch (mm)	M Coarse Thread	M Fine Thread	Shank Dia.	Edge Dia.	No. of Flutes	Flute Length	Overall Length	Bottom Hole Dia.
0.5	M3*0.5		4	2.3	3	6	50	2.5
0.5		M6*0.5	4	4	3	10	50	5.5
0.5		M8-M12*0.5	6	6	3	13	50	7.5
0.6	M3.5*0.6		4	2.7	3	7	50	2.9
0.7	M4*0.7		4	3	3	8	50	3.3
0.75	M4.5*0.75		4	3.4	3	9	50	3.75
0.75		M10-M12*0.75	8	8	3	20	50	9.25
0.8	M5*0.8		4	4	3	10	50	4.2
1	M6*1.0		6	4.8	3	12	57	5.0
1		M8*1.0	6	6	3	16	57	7.0
1		M10*1.0	8	8	3	20	60	9.0
1		M12*1.0	10	10	4	22	75	11.0
1		M16*1.0	12	12	4	22	75	15.0
1		M20-M48*1.0	16	16	4	30	90	19.0
1.25	M8*1.25		6	6	3	16	57	6.75
1.25		M12-M14*1.25	10	10	4	25	75	10.75
1.5	M10*1.5		8	8	3	20	60	8.5
1.5		M12-M20*1.5	10	10	4	28	75	10.5
1.5		M14-M24*1.5	12	12	4	28	75	12.5
1.5		M20-M48*1.5	16	16	4	30	90	18.5
1.75	M12*1.75		10	9.8	4	30	75	10.25
2	M14*2.0	M15-M16*2.0	10	10	4	30	75	12.0
2	M16*2.0	M17-M20*2.0	12	12	4	30	75	14.0
2		M20-M80*2.0	16	16	4	40	90	18.0
2.5	M18-M20*2.5		14	14	4	36	85	15.5
2.5	M20-M80*2.5		16	16	4	40	90	17.5
3	M24*3.0		16	16	4	42	90	21.0
0.75		M6*0.75	6	4.8	3	12	60	5.25
0.75		M8*0.75	6	6	3	16	60	7.25
1.25		M10*1.25	8	8	3	20	60	8.75

M ISO Standard 60°Outer Thread Mill Cutter for Steel
Pitch (mm)	M Coarse Thread	Shank Dia.	Edge Dia.	No. of Flutes	Flute Length	Overall Length
0.5	M3*0.5	4	4	3	6	50
0.7	M4*0.7	4	4	3	8	50
0.75	M4.5*0.75	4	4	3	9	50
0.8	M5*0.8	4	4	3	10	50
1	M6*1.0	6	6	3	13	57
1.25	M8*1.25	6	6	3	16	57
1.5	M10*1.5	8	8	3	20	60
1.75	M12*1.75	10	10	4	28	75
2	M14*2.0	10	10	4	30	75
2.5	M18*2.5	14	14	4	36	85
3	M24*3.0	16	16	4	40	90

Custom Thread End Mill Bits / Thread Mill Cutter CNC Processing Mills

Product Tags:

thread end mill

thread cutting end mill

Custom Thread End Mill Bits / Thread Mill Cutter CNC Processing Mills Images
